40kW
GRD03
Fast DC Charger
Service Station
Parking Lot
Commercial Building
Residential Community
Key Advantages
- 7.10 Inch LCD Display
- Convenient Operation
- IP55, Strong and Durable
- All-round protection
- High intelligence
- Durable, Space-Saving, Indoor & Outdoor
Plug&Charge
APP
RFID
Warranty
Compatible with all EVs
IP55
CE/IEC
OCPP Protocol 1.6
Technical Specifications
| Power specification | |
|---|---|
| Input connection | (3-Phase) :3P+N+PE |
| Voltage input | 400Vac±10% |
| THDi | ≤5% |
| Frequency | 50Hz or 60Hz |
| Power factor | ≥0.98 |
| Output voltage | 150Vdc-1000Vdc |
| Maximum output current | 125Amax |
| Rated power | 40kW |
| User interface and control | |
| LCD monitor | 7/10" color touch screen(optional) |
| User authentication | Credit card customization |
| LED indicator light | Green/Blue/Red |
| Charger connector | CCS2(CCS1/CHAdeMO) optional |
| Number of charging ports | 1 or 2 |
| Energy metering | DC ammeter with a measurement error of 0.5% |
| Communication | |
| Rear | Ethernet (4G optional) |
| Charging protocol | ISO 15118,DIN 70121 |
| Backend protocol | OCPP 1.6J(OCPP2.x) |
| Protection | |
| Residual current device | YES |
| Internal fuse | YES |
| Electrical protection | Charging gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, reverse polarity protection, lightning protection, emergency stop protection and leakage protection |
| Environment | |
| Working temperature | -30°C~+50°C |
| Storage temperature | -40°C~+75°C |
| Working humidity | Max. 93% relative humidity, non-condensing |
| Working height | ≤2000M |
| IP / IK rating | IP55,IK10 |
| Cooling method | Fan cooling |
| Mechanical | |
| Product dimension | Wall-mounted: 600*370*800mm(W*D*H) column-mounted: 600*470*1600(W*D*H) |
| Charging cable length | 5m (Customizable) |
| Installation method | Standalone |
| Certification | |
| Standards | IEC62196-1,IEC62196-3,IEC 61851-1,IEC61851-23,IEC61851-24 |
| Product certification | CE |

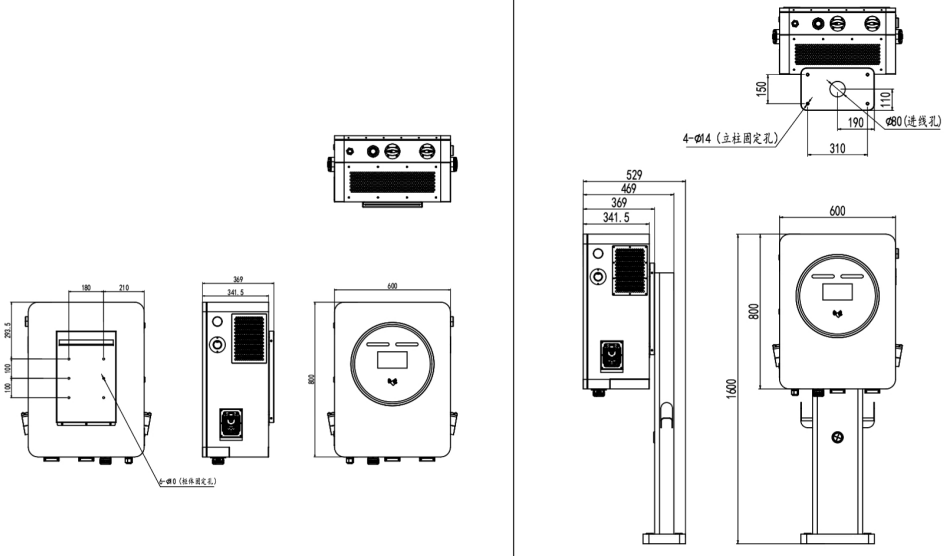

Product Dimension
