EV Charger
Explore AC and DC EV chargers built for commercial sites, public stations, and managed EV networks.
7.4kW / 11kW / 22kW
GRA01
AC Charger
Service Station
Parking Lot
Commercial Building
Residential Community
Key Advantages
- Standard: CCS1 / CCS2 / CHAdeMO
- All-round protection
- IP55, Strong and Durable
- High intelligence
- Flexible installation (wall or pedestal)
Plug&Charge
APP
RFID
Warranty
Compatible with all EVs
IP55
CE/IEC
OCPP Protocol 1.6
Technical Specifications
| Power specification | |
|---|---|
| Input connection | (3-Phase) : 3P+N+PE (Single-Phase Optional: 1P+N+PE) |
| Voltage input | 400Vac±10% (230Vac±10%) optional |
| Input current | 16A or 32A |
| Frequency | 50Hz or 60Hz |
| Output voltage | 400Vac±10% (230Vac±10%) optional |
| Output current | 16A or 32A |
| Rated power | 7kW / 11kW / 22kW |
| User interface and control | |
| LCD monitor | 3.5" dot matrix screen / 4.3" non-touch color screen / screenless |
| User authentication | RFID(ISO/IEC14443)/APP |
| LED indicator light | Green/Blue/Red |
| Charger connector | IEC 62196-Type 2 (SAEJ1772 Type 1) optional |
| Energy metering | Neutral point capacitance compensator |
| Communication | |
| Network interface | Bluetooth / Wi-Fi / Ethernet (4G optional) |
| Backend protocol | OCPP 1.6J(OCPP2.x) |
| Protection | |
| Residual current protection | Type A 30mA+DC 6mA |
| Electrical protection | overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, lightning protection, emergency stop protection and leakage protection |
| Environment | |
| Working temperature | -30°C~+50°C |
| Storage temperature | -40°C~+85°C |
| Working humidity | Max. 93% relative humidity, non-condensing |
| Working height | ≤2000M |
| IP / IK rating | IP55, IK08 |
| Cooling method | Natural cooling |
| Mechanical | |
| Product dimension | Wall-mounted: 270*135*375mm(W*D*H) Pole-mounted: 270*195*1510(W*D*H) |
| Charging cable length | 5m (Customizable) |
| Installation method | Wall-mounted and vertical installation |
| Certification | |
| Standards | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 |
| Product certification | TUV, CE |

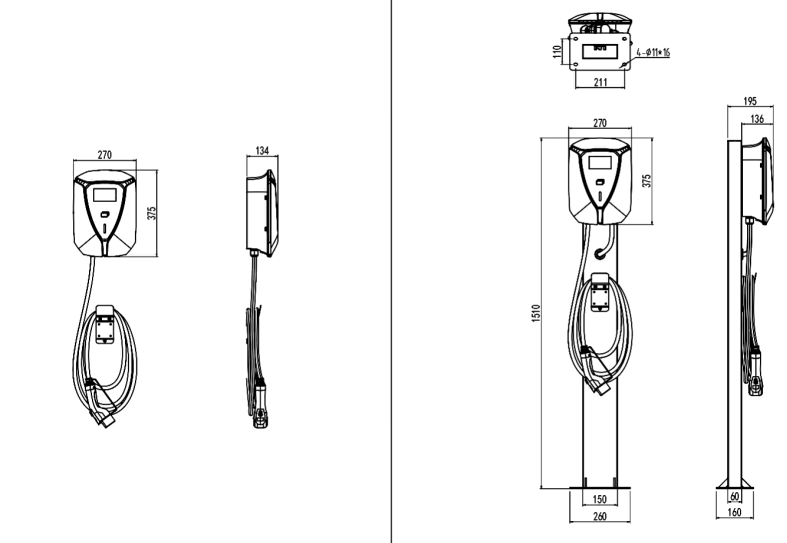

Product Dimension
